Cycle News Staff | April 14, 2018
2019 Husqvarna TC 50, TC 65 and TC 85 Two-Strokes
The Husqvarna mini motocrossers are expected to be available in June 2018.
Here are the details provided by Husqvarna about the three two-stroke mini motocrossers:
2019 Husqvarna TC 50
Offering the same striking looks and ergonomic feel as Husqvarna’s full-sized motocross machines, the TC 50 is perfect for the motocross stars of tomorrow. Featuring superior quality components, the TC 50 has been designed from the ground up in order to be a true premium 50cc motocross bike. The TC 50 is built around an advanced steel frame, which houses the most powerful engine in its category.
Featuring the latest in two-stroke technology, the engine makes use of a three-shaft design for improved mass centralization. The exhaust is specifically designed to match the characteristics of the two-stroke powerplant. The engine is fitted with an automatic centrifugal clutch that reduces riding complexity for younger riders. Part of the official Husqvarna Motorcycles Accessories range, a special kit allows for a reduction of the power for less aggressive riders.
Leading components such as the WP suspension add up to create a motorcycle that sets the benchmark in the class. The TC 50 is fitted with a revolutionary WP AER 35 fork.
Besides being very light, the 35mm forks allow the rider to push the limits with confidence. With 205 mm of wheel travel, the air unit in the left fork leg can be adjusted with an air pump. Offering 185mm of suspension travel, the WP monoshock is matched perfectly to the front forks.
TC 50 Highlights
- Bodywork modeled after full-size range
- Wave brake discs
- Black aluminum rims & standard Maxxis tires
- Radiator spoilers channeling air for better cooling
- Aluminum handlebars with standard crash pad
- All-new graphics in white, yellow & blue

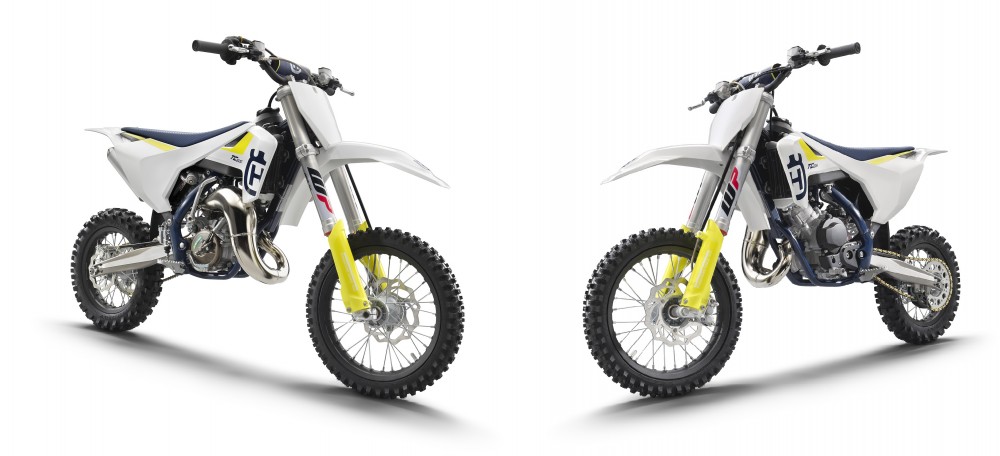

2019 Husqvarna TC 65
The TC 65 offers young motocross fans the chance to experience a full race bike with a hydraulic clutch and a manual gearbox, possibly for the first time in their riding careers. Featuring premium components as standard, the TC 65 offers exactly the same quality as that found on Husqvarna’s larger motocross machines.
Highly competitive in the 65cc class, the TC 65 engine is built using the lightest and most durable materials. Featuring the latest in two-stroke technology, it has a pressure-controlled exhaust valve which helps obtain top-level performance. Additionally, the engine features a manual 6-speed transmission and hydraulic clutch allowing the rider to have full control of the power delivery.
Sophisticated components such as the cast-aluminum swingarm are blended together with advanced solutions like the intelligent cooling circuit to create a motorcycle that is modern and highly competitive. In the suspension department, the TC 65 features a revolutionary WP AER 35 fork, with 215 mm of wheel travel and an adjustable air unit in its left fork. Matched precisely to the forks, the WP monoshock rear suspension offers 270mm of travel and is fully adjustable.
TC 65 Highlights
- Bodywork modeled after full-sized motocross range
- Alloy handlebars with standard crash pad
- Hydraulic clutch system
- Black alloy wheels & standard Maxxis tires
- Wave discs [198mm front & 160mm rear]
- Striking new graphics in white, yellow & blue
2019 Husqvarna TC 85
Raising the bar in the competitive 85cc class, the TC 85 features much of the same technology found in the full-sized Husqvarna motocross motorcycles. Combining the latest in chassis technology with state-of-the-art WP suspension, it offers young mini riders the chance to push their limits with confidence.
Setting the benchmark in the class, the TC 85 two-stroke engine combines top level performance with optimum reliability. The cylinder is designed around an innovative power valve system that significantly enhances power, torque and controlability with a simple and effective adjustment system. The 6-speed gearbox and Formula hydraulic diaphragm spring clutch allow for the power to be correctly delivered across the rpm range.
Mirroring technology found in Husqvarna’s full-size motocross models, the TC 85 features the latest WP suspension componentry. Up front, the WP AER 43 has a split fork design with air in its left leg and oil in the right leg. Offering advanced damping characteristics, the forks are easily adjustable via the easy access clickers and with the use of the supplied pump. In the rear, the TC 85 is fitted with a special version of the WP XPlor PDS shock absorber. Designed to work perfectly with the forks, the rear shock is fully adjustable for preload, compression and rebound.
TC 85 Highlights
- Available in two wheel sizes; 17/14 and 19/16
- Self-cleaning gear selector
- “No-dirt” footpegs preventing dirt build-up
- Aluminum subframe & one-piece aluminum swingarm
- Free-play adjustment throttle assembly & ODI lock-on grips
- Airbox offering tool-less access to air filter
- Black Excel wheels & standard Maxxis tires
- Formula calipers & waved discs [240mm front & 210mm rear]
- All-new graphics
|
SPECIFICATIONS
|
|
|
|
|
| 2019 Husqvarna Mini MX |
TC 50 |
TC 65 |
TC 85 17/14 |
TC 85 19/16 |
|
Engine type
|
Single-cylinder, 2-stroke
|
Single-cylinder, 2-stroke
|
Single-cylinder, 2-stroke
|
Single-cylinder, 2-stroke
|
|
Displacement
|
49cc
|
64.9cc
|
84.93cc
|
84.93cc
|
|
Bore/stroke
|
39.5/40mm
|
45/40.8mm
|
47/48.95mm
|
47/48.95mm
|
|
Starter
|
Kickstarter
|
Kickstarter
|
Kickstarter
|
Kickstarter
|
|
Carburetor
|
Dell’Orto PHBG 19 BS
|
Mikuni VM 24
|
Keihin PWK 28
|
Keihin PWK 28
|
|
Control
|
–
|
Slide valve, exhaust gas pressure dependent
|
Rotation speed dependent exhaust flap
|
Rotation speed dependent exhaust flap
|
|
Lubrication
|
Mixture lubrication 1:60
|
Mixture lubrication 1:60
|
Mixture lubrication 1:40
|
Mixture lubrication 1:40
|
|
Transmission
|
Single gear automatic
|
6 gears
|
6 gears
|
6 gears
|
|
Gear ratios
|
14:31
|
13:37 16:34 18:31 21:30 23:28 24:26
|
11:29 14:28 16:26 19:26 21:25 20:21
|
11:29 14:28 16:26 19:26 21:25 20:21
|
|
Primary ratio
|
61:33
|
23:75
|
20:64
|
20:64
|
|
Final drive
|
11:40
|
14:48
|
13:46
|
13:49
|
|
Cooling
|
Liquid cooling
|
Liquid cooling
|
Liquid cooling
|
Liquid cooling
|
|
Clutch
|
Centrifugal clutch (adjustable)
|
Wet multi-disc clutch, Formula hydraulics
|
Wet multi-disc clutch, Formula hydraulics
|
Wet multi-disc clutch, Formula hydraulics
|
|
Ignition
|
Selettra 2p D36
|
AET digital
|
Kokusan
|
Kokusan
|
|
Frame
|
Chrome-molybdenum steel central-tube frame
|
Chrome-molybdenum steel central-tube frame
|
Central double-cradle-type 25CrMo4 steel
|
Central double-cradle-type 25CrMo4 steel
|
|
Subframe
|
Steel
|
Aluminum
|
Aluminum
|
Aluminum
|
|
Handlebar
|
Aluminum Ø 22 mm
|
Aluminum Ø 22 mm
|
Tapered aluminum, Ø 28/22 mm
|
Tapered aluminum, Ø 28/22 mm
|
|
Front suspension
|
WP-USD, AER 35 , Ø 35mm
|
WP-USD, AER 35 , Ø 35mm
|
WP AER Ø 43mm
|
WP AER Ø 43mm
|
|
Rear suspension
|
WP mono shock
|
WP mono shock
|
WP Xplor PDS
|
WP Xplor PDS
|
|
Suspension travel front/rear
|
205/185mm
|
215/270mm
|
280/305mm
|
280/305mm
|
|
Front brake
|
Disc brake Ø 160mm
|
Disc brake Ø 198mm
|
Disc brake Ø 220mm
|
Disc brake Ø 220mm
|
|
Rear brake
|
Disc brake Ø 160mm
|
Disc brake Ø 160mm
|
Disc brake Ø 210 mm
|
Disc brake Ø 210mm
|
|
Front/rear rims
|
1.50 x 12″; 1.60 x 10″ Alu
|
1.60 x 14″; 1.60 x 12″ Alu
|
1.40 x 17″; 1.60 x 14″ Alu
|
1.60 x 19″; 1.85 x 16″ Alu
|
|
Front/rear tires
|
60/100 x 12″; 2.75 x 10″
|
60/100 x 14″; 80/100 x 12″
|
70/100 x 17″; 90/100 x 14″
|
70/100 x 19″; 90/100 x 16″
|
|
Chain
|
1/2 x 3/16″
|
1/2 x 1/4″
|
428
|
428
|
|
Silencer
|
Aluminum
|
Aluminum
|
Aluminum
|
Aluminum
|
|
Steering-head angle
|
24°
|
25.5°
|
24°
|
24°
|
|
Triple-clamp offset
|
22mm
|
22mm
|
14mm
|
14mm
|
|
Wheel base
|
1,032 mm ± 10mm / 40.6 in ± 0.4 in
|
1,137 mm ± 10mm / 44.8 in ± 0.4 in
|
1,290 ± 10mm / 50.8 in ± 0.4 in
|
1,290 ± 10mm / 50.8 in ± 0.4 in
|
|
Ground clearance
|
252mm / 9.9 in
|
280mm / 11 in
|
352mm / 13.9 in
|
377mm / 14.8 in
|
|
Seat height
|
684mm / 27 in
|
750mm / 29.5 in
|
850mm / 33.5 in
|
885mm / 34.8 in
|
|
Tank capacity
|
2.3 L / 0.6 gal
|
3.7 L / 1 gal
|
5 L / 1.3 gal
|
5 L / 1.3 gal
|
|
Weight (without fuel)
|
41.5 kg / 91.5 lbs
|
53 kg / 116.8 lbs
|
67.0 kg / 147.7 lbs
|
68.0 kg / 149.9 lbs
|
